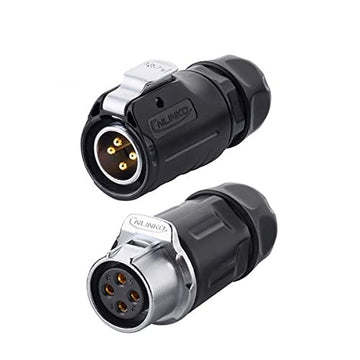

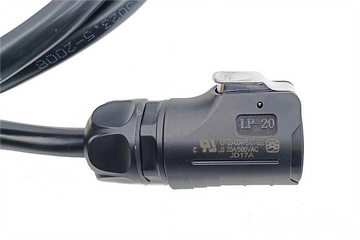

LP-20-C04PE-01-022 4 Pin Male Cable Plug for power cable
The LP-20-C04PE-01-022 is a 4-pin male cable plug designed for Antminer APW11 Hydro PSU cable applications. It is compatible with 14-12 AWG cable sizes and has a high rating of 500V and 20A. With its self-locking and easy release design, it is suitable for various applications like audio/visual equipment, medical...
The LP-20-C04PE-01-022 is a 4-pin male cable plug designed for Antminer APW11 Hydro PSU cable applications. It is compatible with 14-12 AWG cable sizes and has a high rating of 500V and 20A. With its self-locking and easy release design, it is suitable for various applications like audio/visual equipment, medical devices, testing and measurement equipment, and industrial control. It is also known as LP-20-C04PE-01-001. In addition, it has high standards of IP67 waterproof, fireproof, and sun protection and has passed the UV0 fire retardant test.
Specifications
Specifications
- Dimensions- 65 mm Length x 35 mm Height (2.56" x 1.38")
- Number of Pins- 4
- Wire Gauge- 14-12 AWG
- Diameter Range- 8-12mm
- Contact Diameter- 2.7mm
- Rated Current- 20A
- Operating Voltage- 500V
- Contact Resistance- <1mOhm
- Withstanding Voltage- 2500V
- Insulation Resistance- > 500MOhm
- Ingress Protection- IP65/67
- Operating Temperature- -40 C to 80 C (-40 F to 176 F)
- Housing Material- High Performance Plastic
- Hardware- Zinc Alloy
- Contact Material- Gold Plated Copper Alloy
- Flammability Rating- UL94-V0
- Wiring Mode- Soldering
| Vendor: | |
|---|---|
| Weight: |
0.02 kg |
